DrillMate Portable Drill Guide

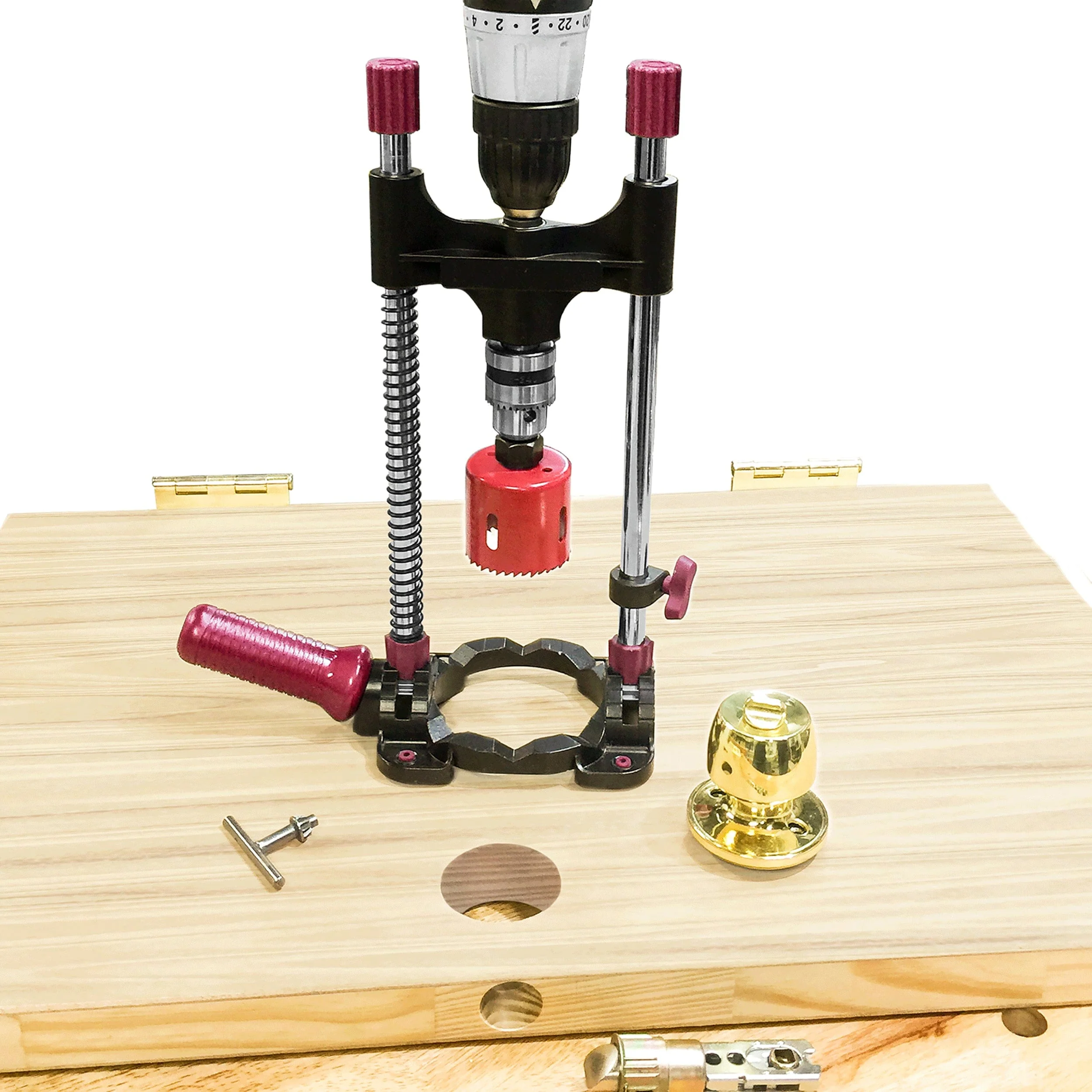

Drill straight holes all the time! With the Milescraft DrillMate® you can drill straight or angled holes, drill on the edge of a board or even round stock. The drive shank attaches to your 3/8" or 1/2" power drill while the keyed output chuck works with most 3/8" drill accessories. The all-metal construction DrillMate provides the precision of a drill press with the ease of a hand drill. Smooth operation and controlled drilling via spring and bearings prevent cutting tool from hitting workpiece. Adjustable depth-stop makes repetitive drilling to any depth with near drill press precision. The metal base has a scale with easy to read angles, V-grooves for centering of round materials, and holes for permanent mounting for special fixture applications.
Features:
- Self-centering drill guide base allows for drilling accurate angles and depths
- Adjustable depth stop for drilling holes to a precise depth
- V-groove for drilling on round stock
- Easy to read scale permanently cast into aluminum base
- Drill stand base is formed for exact centering on round or flat edges
- Non-slip TPE feet prevent slipping and marring on the work surface
- Mounting holes for mounting with screws when needed
- Spring action controls the rate of drill penetration and return
- Plunge rods interlock with metal base for secure angle drilling
- Auxiliary handle for controlled movement
Specifications:
- Material: Metal and plastic
- Keyed Chuck: 3/8" (compatible with most 3/8" drill accessories)
- 3/8" Chuck Thread: 3/8" x 24 thread
- Spindle Shaft Diameter: .47"
- Spindle Shaft Length: 3.66"
- Drill Bit Clearance: Maximum 7.50"
- Base Dimensions: 5.5" x 4.25"
- Base Opening: 3.50"
- Compatiblity: drive shank attaches to your 3/8" or 1/2" power drill
- Fixed Angle Settings: 45°, 60°, 75° and 90°
What's Included:
- (1) Milescraft - DrillMate Portable Drill Guide
Notes:
- Not intended for use with impact drivers or hammer drills.
$13.50
Original: $44.99
-70%DrillMate Portable Drill Guide—
$44.99
$13.50Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Drill straight holes all the time! With the Milescraft DrillMate® you can drill straight or angled holes, drill on the edge of a board or even round stock. The drive shank attaches to your 3/8" or 1/2" power drill while the keyed output chuck works with most 3/8" drill accessories. The all-metal construction DrillMate provides the precision of a drill press with the ease of a hand drill. Smooth operation and controlled drilling via spring and bearings prevent cutting tool from hitting workpiece. Adjustable depth-stop makes repetitive drilling to any depth with near drill press precision. The metal base has a scale with easy to read angles, V-grooves for centering of round materials, and holes for permanent mounting for special fixture applications.
Features:
- Self-centering drill guide base allows for drilling accurate angles and depths
- Adjustable depth stop for drilling holes to a precise depth
- V-groove for drilling on round stock
- Easy to read scale permanently cast into aluminum base
- Drill stand base is formed for exact centering on round or flat edges
- Non-slip TPE feet prevent slipping and marring on the work surface
- Mounting holes for mounting with screws when needed
- Spring action controls the rate of drill penetration and return
- Plunge rods interlock with metal base for secure angle drilling
- Auxiliary handle for controlled movement
Specifications:
- Material: Metal and plastic
- Keyed Chuck: 3/8" (compatible with most 3/8" drill accessories)
- 3/8" Chuck Thread: 3/8" x 24 thread
- Spindle Shaft Diameter: .47"
- Spindle Shaft Length: 3.66"
- Drill Bit Clearance: Maximum 7.50"
- Base Dimensions: 5.5" x 4.25"
- Base Opening: 3.50"
- Compatiblity: drive shank attaches to your 3/8" or 1/2" power drill
- Fixed Angle Settings: 45°, 60°, 75° and 90°
What's Included:
- (1) Milescraft - DrillMate Portable Drill Guide
Notes:
- Not intended for use with impact drivers or hammer drills.
